Description

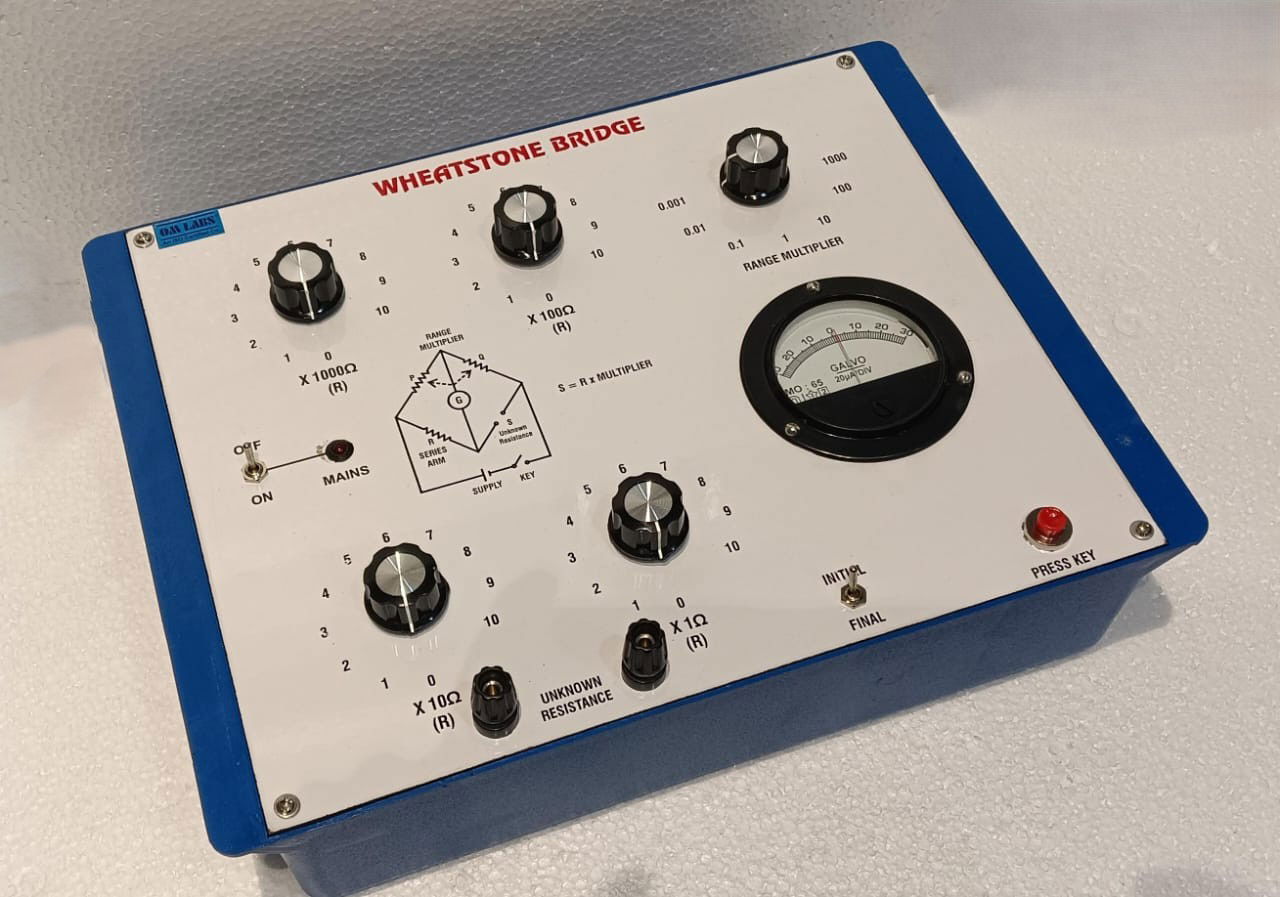

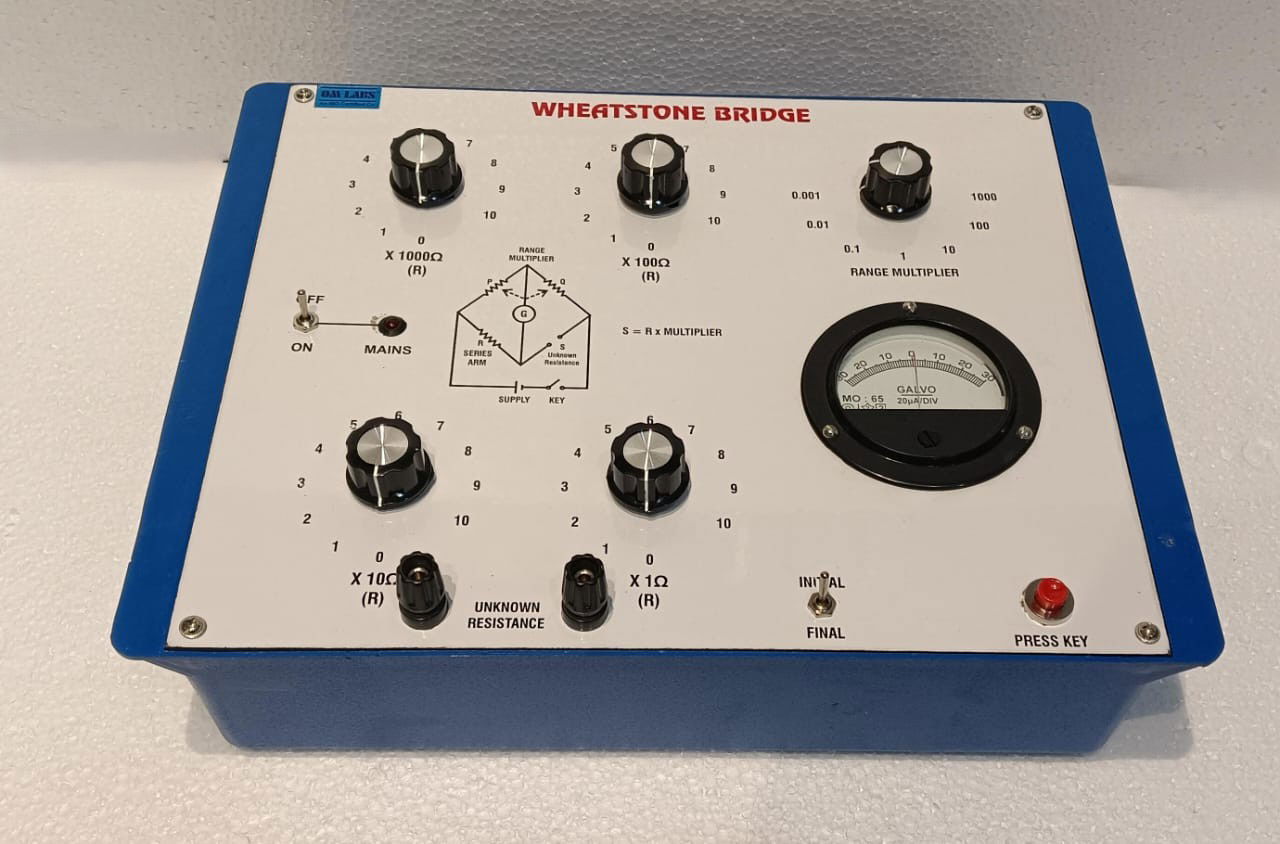

Specification: Wheatstone Bridge Trainer / Measurement Box
- Galvanometer:
- Type: Moving coil type
- Sensitivity: 20 µA/div (marked as GALVO)
- Center-zero indicator for detecting null balance
- Range Multipliers:
- Settings: 0.001, 0.01, 0.1, 1, 10, 100, 1000
- Resistance Decade Switches:
- X 1 Ω (0–10 Ω)
- X 10 Ω (0–100 Ω)
- X 100 Ω (0–1000 Ω)
- X 1000 Ω (0–2000 Ω)
- Each controlled via rotary knobs (step of 1 per knob position)
- Switches:
- Power Switch: ON/OFF toggle
- Initial/Final Switch: Used for measurements cycle
- Push Button: “PRESS KEY” to activate the bridge for reading
- Circuit Diagram:
- Printed on the panel for reference
- Shows the Wheatstone bridge configuration with arms labeled R1, R2, R3, and unknown resistor Rx
- Unknown Resistance Terminals:
- Clearly marked terminals to connect the resistor to be measured
- Dimensions: 29.5 x 21.5 x 11.5 cm Approx.
- Weight: 1.4 kg Approx.
- Packing: Card Board Box
- HSN CODE: 9023
- GST: General Standard 18%
- CATAGORIES: Electronics
- BRAND: OM LABS
