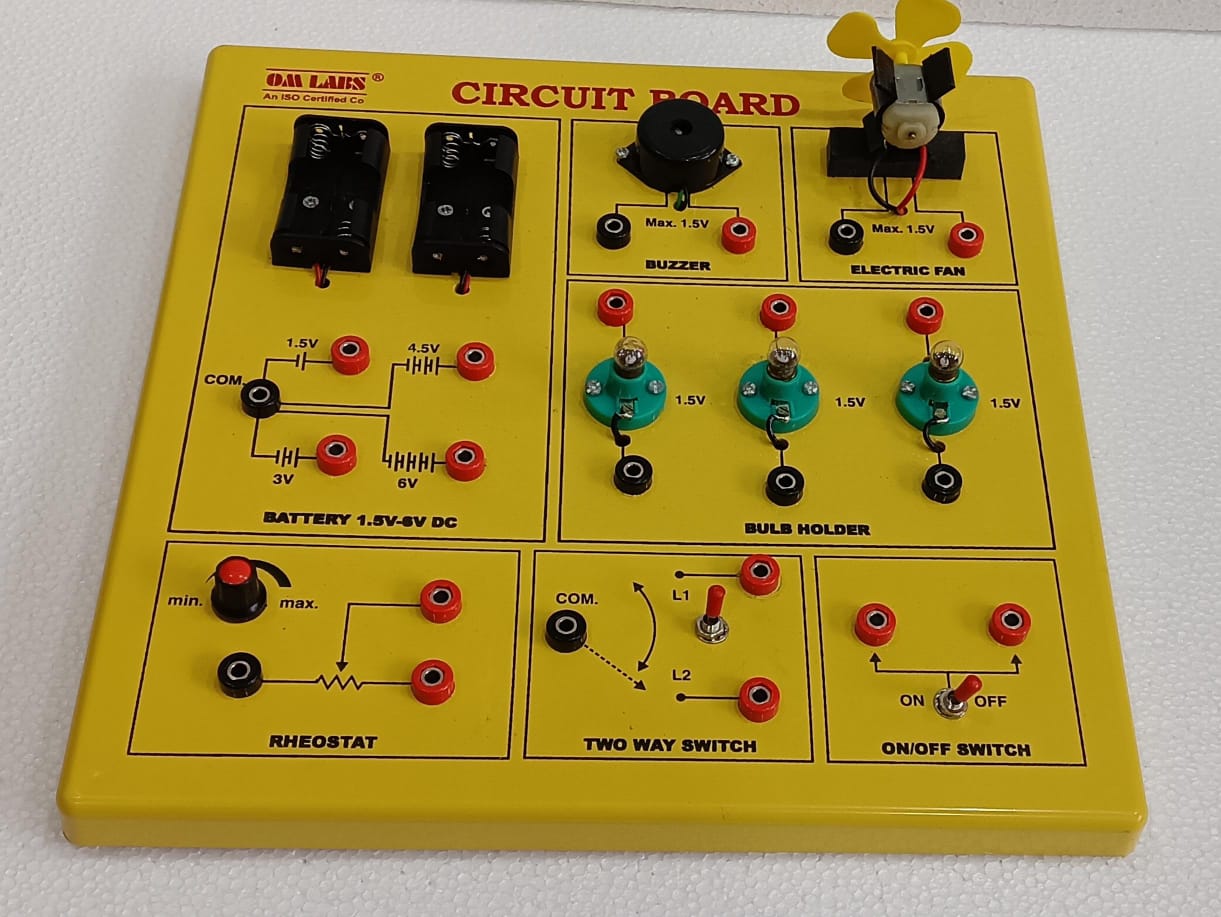

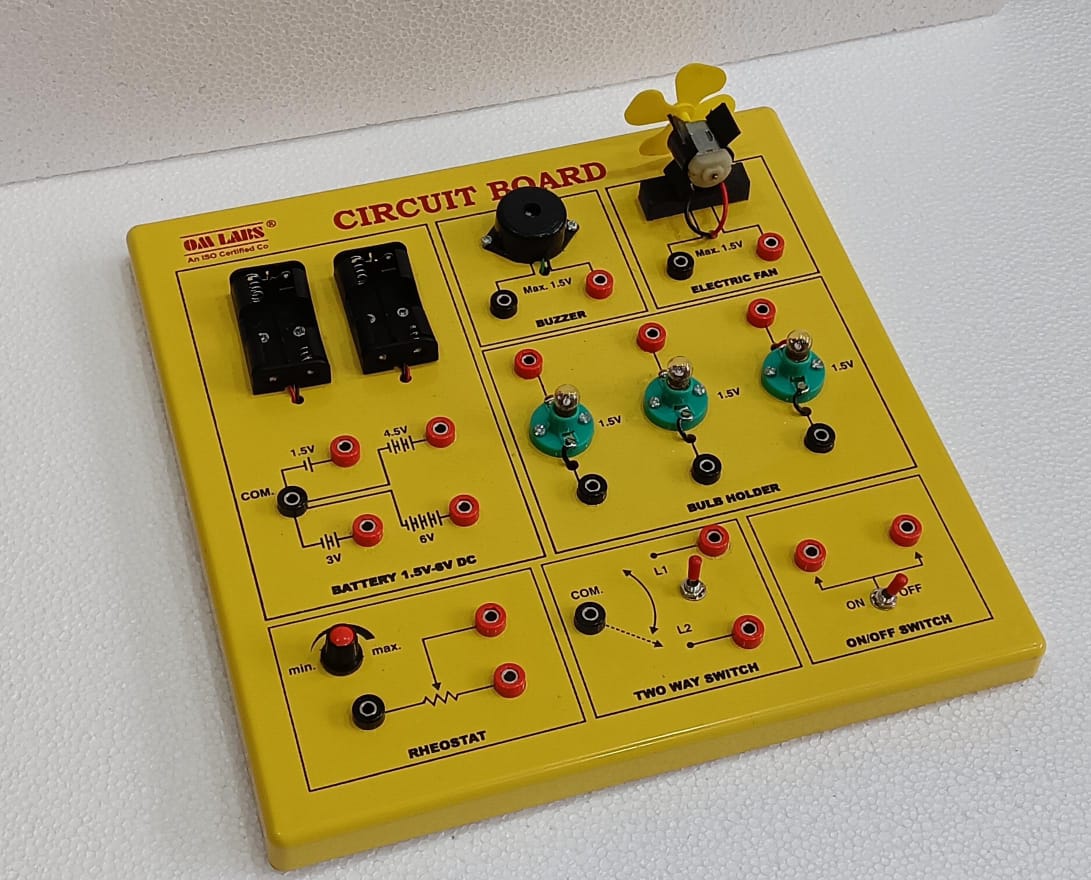

Description
Specification:
- Battery Section (1.5V–6V DC)
- Battery Holders: 2x holders (probably AA or AAA).
- Voltage Terminals:
- COM (Common ground).
- 1.5V, 3V, 4.5V, and 6V terminals.
- Pre-configured internal series connection (1.5V steps).
- Use: Provides different voltage levels for experiments.
- Buzzer
- Voltage: Max 1.5V.
- Type: DC buzzer.
- Use: Emits sound when powered; used to indicate circuit completion or alarm.
- Electric Fan
- Voltage: Max 1.5V.
- Type: Small DC motor.
- Use: Demonstrates conversion of electrical energy to mechanical energy.
- Bulb Holders (x3)
- Voltage: 1.5V each.
- Sockets: Standard miniature screw-type.
- Use: Basic circuits, series/parallel connection experiments.
- Rheostat
- Adjustment: knob (min to max).
- Terminals: 3 (input, variable output, and ground).
- Use: Demonstrate resistance control and voltage drop.
- Two-Way Switch
- Terminals: COM, L1, L2.
- Use: Demonstrate switching between two outputs or toggling paths in a circuit
- On/Off Switch
- Use: Simple circuit control.
This circuit board is mainly used for:
- Basic electronics and physics experiments.
- School-level science education.
- Understanding current, voltage, resistance.
- Demonstrating concepts like:
- Series and parallel connections.
- Energy conversions (electrical → mechanical/sound/light).
- Use of switches and controls in real-world circuits.
- Dimensions:31 x 31 x 08cm Approx.
- Weight: 718 gm Approx.
- Packing: Card Board Box
- HSN CODE: 9023
- GST: General Standard 18%
- CATAGORIES: Physics Model
- BRAND: OM LABS
